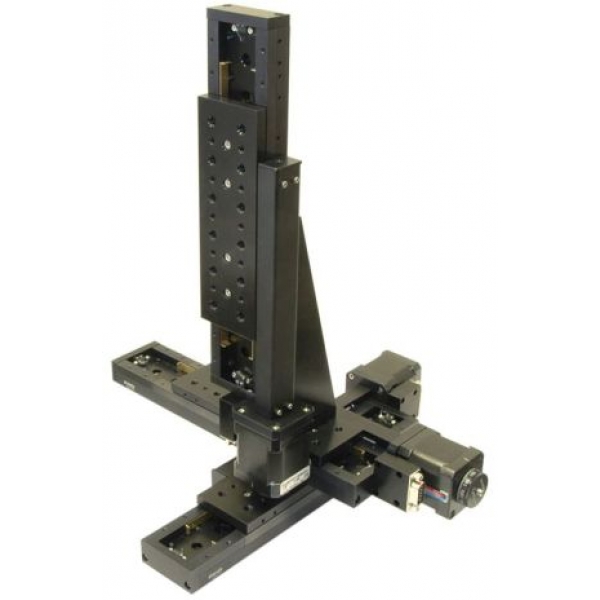

XYZ-LSMA-30-50x50x50


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

LSMA miniature linear actuators designed for the space confined applications while retaining the high reliability required in production environments. It is an ideal choice for measurement, testing, alignment and component assembly in any application on the factory floor or laboratory environments.

The precision ball screw or micrometer grade lead screw provide excellent accuracy and repeatability with ultra-fine positioning resolution capability of 0.1 micron or finer when driven by the stepper motor. The servomotor version is equipped with a rotary encoder and provides exceptionally smooth travel.



Click Below Images To Enlarge

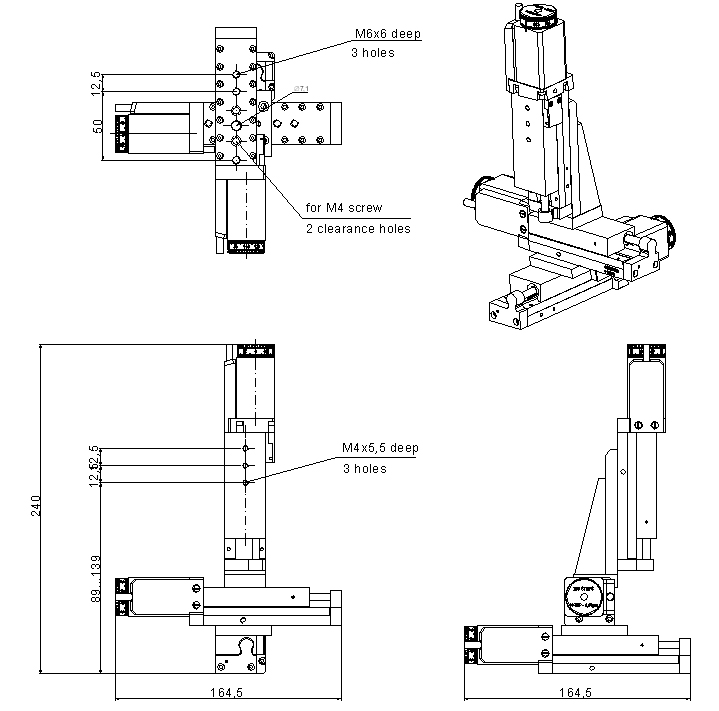

XYZ STAGE STROKE 50x50x50 mm

There are no related products for this product.

XYZ Stroke

mm

50x50x50

Screw lead

mm

0.25

Motor mounts size



Nema11, Nema17

Motor type



Stepper (standard)

Servo/encoder 1000 cpr

Load horizontal / vertical

kg

5 / 3

Repeatability

micron

1

Stage weight

kg

1.5

Speed

mm/sec

5 (stepper)

10 (servo)



Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step

where: motor has 200 full steps/rev;

driver micro-stepping resolution 64, 128, 256 micro-steps/step



Closed loop servo resolution = screw_lead/encoder_cpr/4

where: encoder_cpr is number of encoder counts per revolution;

4 is post-quad processing in the motion controller
