XY-BSMA-LY-110-75x75


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

BSMA miniature linear actuators designed for the space confined applications while retaining the high reliability required in production environments. It is an ideal choice for measurement, testing, alignment and component assembly in any application on the factory floor or laboratory environments.

The precision ball screw or micrometer grade lead screw provide excellent accuracy and repeatability with ultra-fine positioning resolution capability of 0.1 micron or finer when driven by the stepper motor. The servomotor version is equipped with a rotary encoder and provides exceptionally smooth travel.



Click Below Images To Enlarge

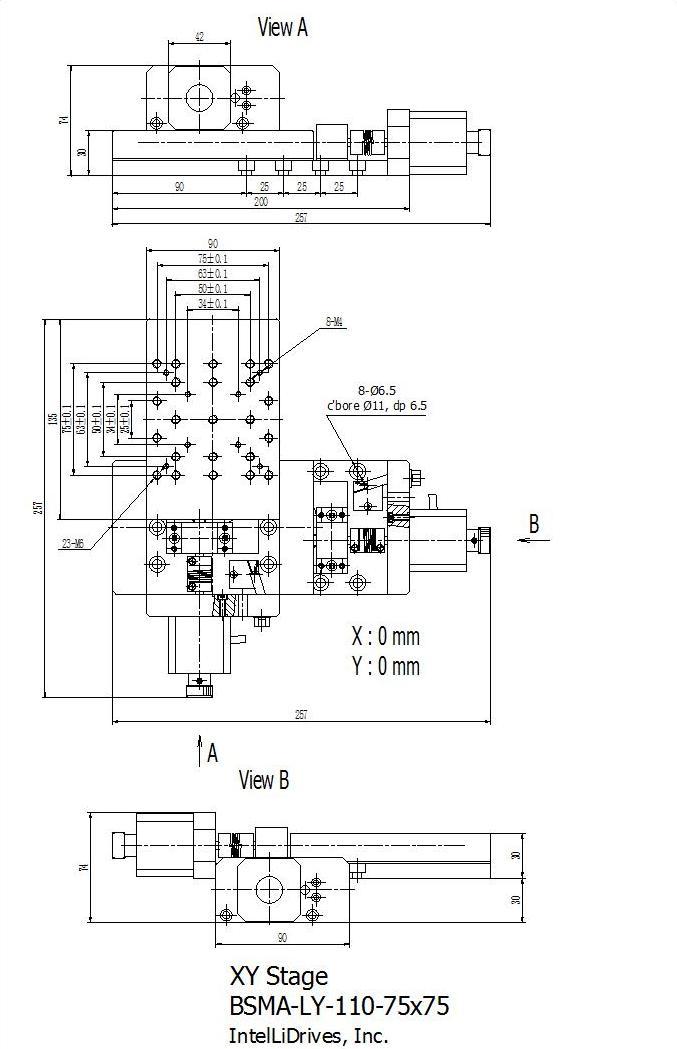

XY Table BSMA-LY-110-75x75

Position: X = 0, Y = 0

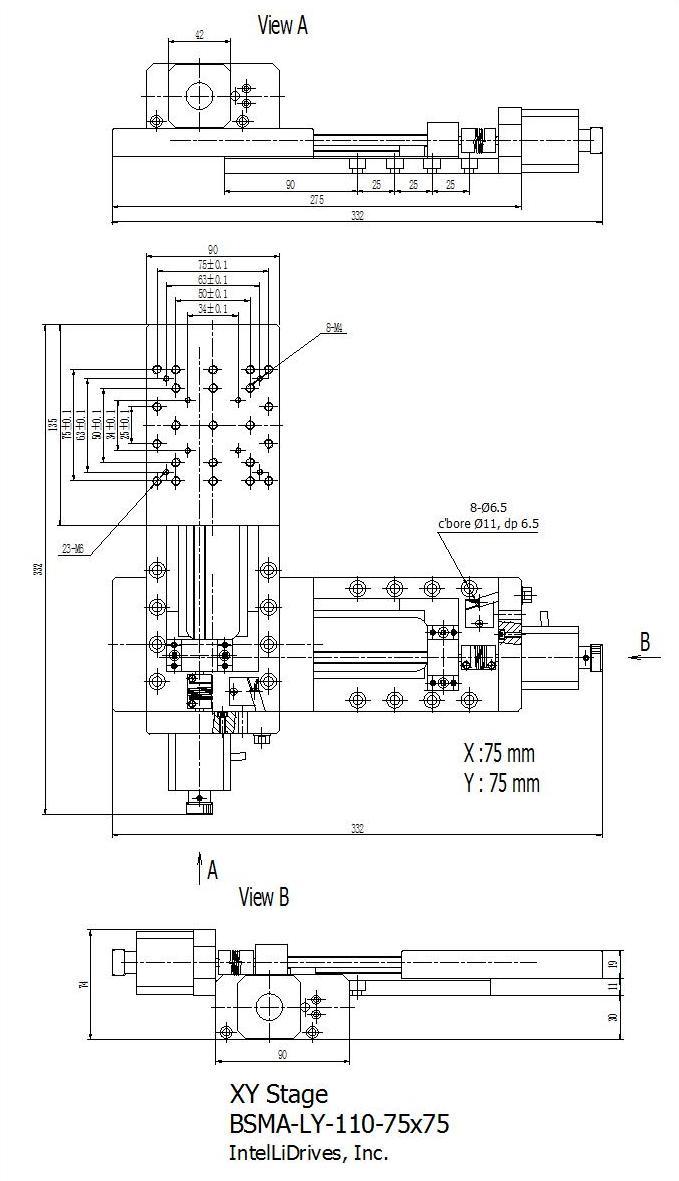

XY Table BSMA-LY-110-75x75

Position: X = 75, Y = 75

XY-BSMA-LY-110H-30x30
XY-BSMA-LY-110H-30x30
XY-BSMA-LY-110H-30x30

XY stroke 30x30mm

Load horiz. 4 Kg

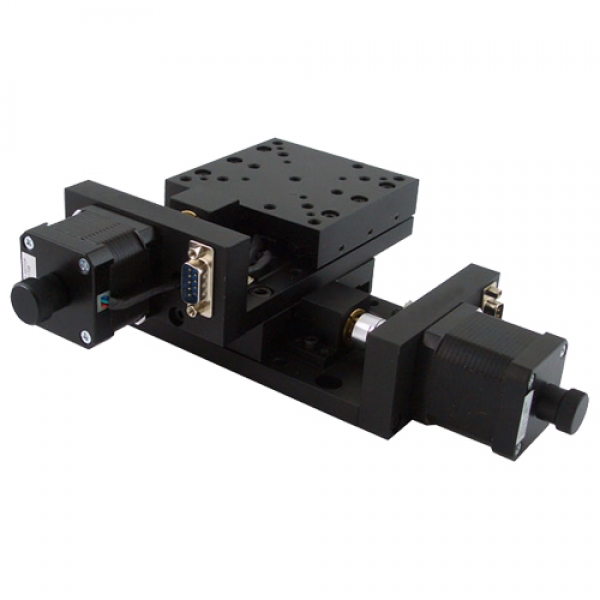

XY-BSMA-LY-110-50x50
XY-BSMA-LY-110-50x50
XY-BSMA-LY-110-50x50

XY stroke 50x50mm

Load horiz. 5 Kg

XYZ-BSMA-LY-110H-30x30x30
XYZ-BSMA-LY-110H-30x30x30
XYZ-LY-110H-30x30x30

XYZ stroke 30x30x30mm

Load vertical 3 Kg

XYZ-BSMA-LY-110-50x50x50
XYZ-BSMA-LY-110-50x50x50
XYZ-LY-110-50x50x50

XYZ stroke 50x50x50mm

Load vertical 5 Kg

XYZ-BSMA-LY-110-75x75x75
XYZ-BSMA-LY-110-75x75x75
XYZ-LY-110-75x75x75

XYZ stroke 75x75x75mm

Load vertical 5 Kg

XY-BSMA-LY-110-30x30
XY-BSMA-LY-110-30x30
XY-BSMA-LY-110-30x30

XY stroke 30x30mm

Load horiz. 5 Kg

XYZ-BSMA-LY-110-30x30x30
XYZ-BSMA-LY-110-30x30x30
XYZ-LY-110-30x30x30

XYZ stroke 30x30x30mm

Load vertical 5 Kg

Actuator

BSMA-LY-110-75

Stroke X x Y

75x75 mm

Ball screw lead

1 mm

Motor mounts

 Nema17

Motor type

stepper

servo with encoder (4000cpr)

Repeatability

± 10 microns

Load capacity

4 kg

Max screw speed

10 RPS (stepper)

20 RPS (servo/encoder)

RPS (rev/sec)

Speed in mm/sec = RPS x screw_lead
