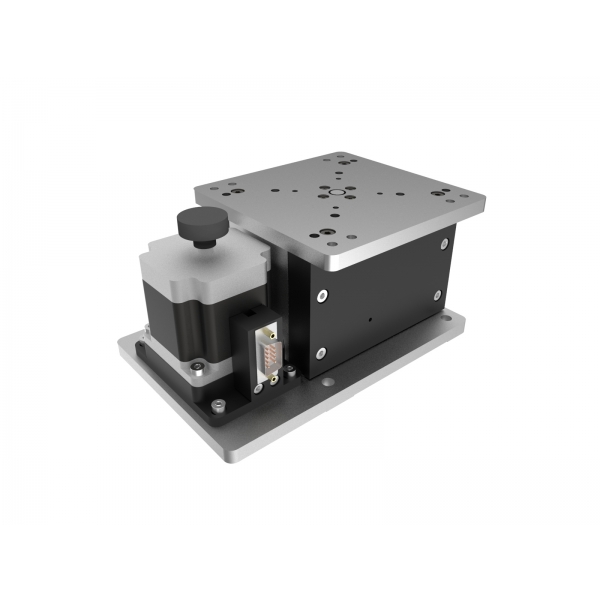

Lift stage MLVT-25J
Vertical Lift Stages MLVT Series offers precise vertical translation for payload elevation. A unique wedge design or direct drive motorized screw converts motor rotation into true vertical elevation of the platform. Precision bearings provide platform stiffness and stability while the screw mechanism assures positioning accuracy.
Available with 25 and 50 mm lift.
 Lift Stage MLVT-120-5 MLVT-120-5 Lift stroke 5 mm Load 12 Kg |
 Lift stage MLVT-70-13 MLVT-70-13 Lift stroke 13 mm Load 8 Kg |
 Lift stage MLVT-100-25 MLVT-100-25 Lift stroke 25 mm Load 10 Kg |
 Lift stage MLVT-40-13 MLVT-40-13 Lift stroke 13 mm Load 6 Kg |
 Lift Stage LSZ-12W Lift Stage LSZ-12W Lift stroke 12 mm Load 12 Kg |
 Lift Stage LSZ-25W Lift Stage LSZ-25W Lift stroke 25 mm Load 12 Kg |
 Lift Stage LSZ-8S Lift Stage LSZ-8S Lift stroke 8 mm Load 2-5 Kg |
|
Model |
MLVT-25J
|
|
Stroke, mm |
25 and 50 |
|
Mechanism |
ball screw / wedge |
|
Lift translation mm/motor rev |
1:1 |
|
Resolution |
Motor and drive dependent |
|
Repeatability, micron |
10 |
|
Max speed, mm/sec |
20 (Stepper) |
|
Load capacity, kg |
12 |
|
Motor |
stepper, servo/encoder/SMART |
|
Stage weight, kg |
2.5 |
