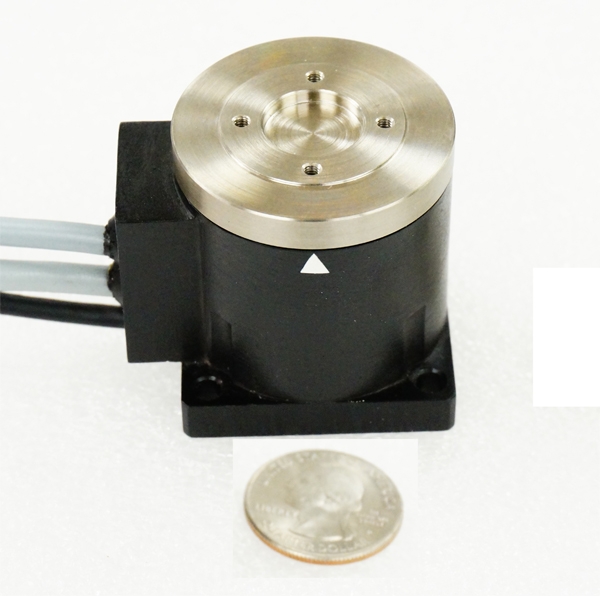

Miniature Rotary Table mSRT40A
Low profile and miniature rotary table with 40 mm footprint. Designed for the applications in the laboratory and production environment.
 Rotary Tables SRT03-SRT10 SRT03-SRT10 Diameter 125 mm Aperture 65 mm Height 85 to 135 mm Load 30 kg |
 Rotary table PSR-150 PSR-150
Diameter 152 mm Aperture 15 mm Height 42 mm |
Rotary Tables SRT01 SRT01 Diameter 115 mm Aperture 30 mm Height 70 mm Load 20 kg |
 Rotary table ACR-32UT (Ultrathin) ACR-32UT Diameter 116 mm Aperture 32 mm Height 22 mm |
 mSRT100-24 mSRT100-24 Diameter 100 mm Aperture 24 mm Height 57.5 mm Load 30 kg |
 SRT115-45-OR SRT115-45-OR Diameter 115 mm Aperture 45 mm Height 50 mm Load 50 kg |
|
Parameter |
|
Unit |
mSRT40A |
|
Tabletop diameter |
|
mm |
40 |
|
Height |
|
mm |
43
|
|
Aperture |
|
mm |
- |
|
Motor type |
|
|
Three phase rushless Direct drive |
|
Peak Torque |
Tp |
Nm |
0.35 |
|
Continuous torque |
Tc |
Nm |
0.15 |
|
Peak current |
Ip |
Amp |
3.75 |
|
Continuous current |
Ic |
Amp |
1.25 |
|
Sine encoder standard optional |
|
Lines/rev |
650
|
|
Digital encoder standard optional |
|
Counts/rev |
|
|
Axial load |
|
Kg |
2.5 |
|
Accuracy / repeatability / resolution |
|
arcsec |
30 / 2 /1 |
|
Rated speed |
Nc |
RPM |
3,000 |
|
Radial/axial run-out |
|
Microns |
25/25 |
|
Rotating inertia |
|
Kg·m2 |
0.00002
|
|
Stage weight |
|
Kg |
0.25 |
