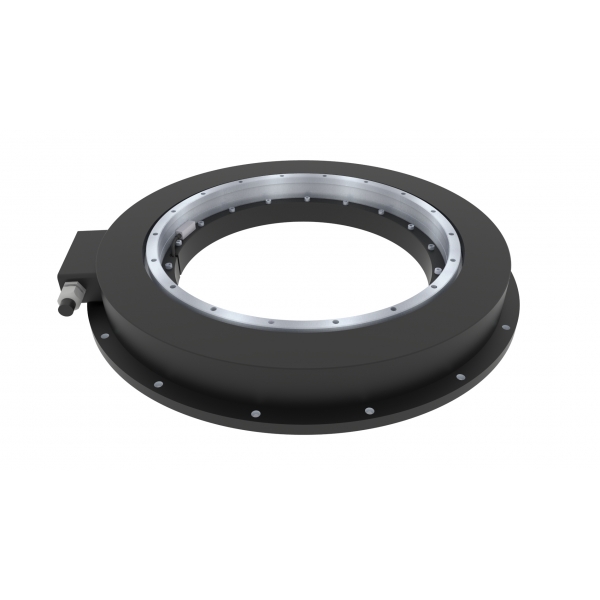

Rotary table ACR-332HT (High torque)


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated



AccuRing rotary tables provide superior angular positioning and are designed to eliminate backlash, friction and wear problems associated with worm, gear and belt drives. Low maintenance and high throughput characteristics of the AccuRing stage yields the lowest total cost of ownership.



Compact package and Superior design of the AccuRing rotary stages was optimized to minimize stage height. The low profile of the stage reduces total system working height. Angular contact bearings are used to maximize performance with respect to wobble, moment stiffness and friction. AccuRing stage has large clear center aperture that can be used for air or wire line feed-through or beam delivery.



AccuRing utilizes direct drive three phase brushless motor technology. There are no brushes to replace and no gear trains or belts to maintain. Coreless magnetic design assures smooth rotation and dynamic performance.



Accurate Positioning is assured with contact-less encoder. The motor and rotary encoders are directly coupled to eliminate coupling backlash. The low inertia and zero backlash make AccuRing the ideal solution for applications requiring frequent directional changes.





Semiconductor assembly

    Electronics assembly

Precision machine tools

    Robotic handlers

Wafer processing

    Automation



Click Below Images To Enlarge

Rotary table ACR-250HT (High torque)
Rotary table ACR-250HT (High torque)
ACR-250HT

Diameter 430 mm

Aperture 254 mm

Height 68 mm

Rotary table ACR-325HT (High torque)
Rotary table ACR-325HT (High torque)
ACR-325HT

Diameter 550 mm

Aperture 324 mm

Height 75 mm

Rotary table ACR-490HT (High torque)
Rotary table ACR-490HT (High torque)
ACR-490HT

Diameter 675 mm

Aperture 490 mm

Height 68 mm

Rotary table ACR240HT-ABS
Rotary table ACR240HT-ABS
Rotary_table_ACR240-ABS



Diameter 430 mm

Aperture 238 mm

Absolute encoder

Rotary table ACR-414HT (High torque)
Rotary table ACR-414HT (High torque)
ACR-414HT

Diameter 590 mm

Aperture 414 mm

Height 68 mm


System Performance

Unit

ACR-332HT

Center aperture

mm

332

Outside diameter

mm

510

Stage height

mm

68

Peak Torque

Tp

 (Nm)

335

Continuous torque

air cooling, coil 120°C

Tc120

(Nm)

167

Peak current at Tp

Amp p rrms

12-40

Continuous current at Tc

Amp c rrms

5-8

Supply voltage (note 1)

Uvac

220-380

Max speed at Tp and Us

(note 2)

RPM

100

Max speed at Tc and Us

(note 2)

RPM

150

Positioning resolution

(note 3)

counts/rev



1,152,000 - 4,608,000

Positioning resolution

(arc-sec)

0.28 - 1,12

Accuracy

Arc-sec

<30

Repeatability Arc-sec <1

Run-out axial/radial

micron

<30

Rotor Inertia kr x m2 0.15

Stage weight

M (Kg)

45

Axial load (not 4)

M (Kg)

400



Note 1: Rotary table can operate at lower voltages with lower speeds

Note 2: Speed values shown at rated torque

Note 3: Max speed may be limited by controller's encoder frequency input.

            Sin/cos 1 Vpp and other encoder resolutions available.

            Contact the factory.
Note 4: Load center of gravity is at the center of rotation
