Theta-2-Theta RTLA-30-100-90-200

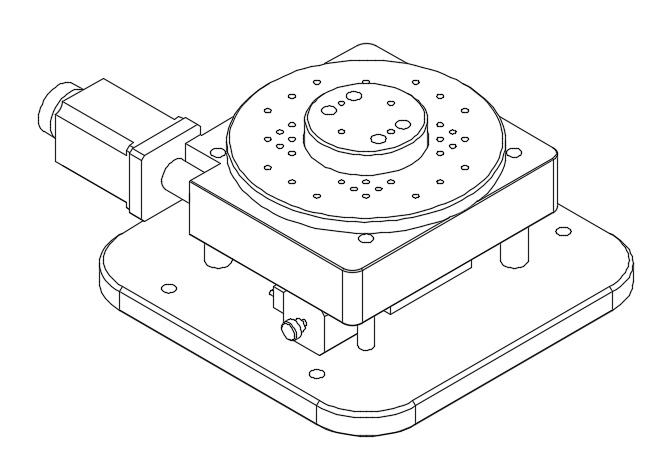

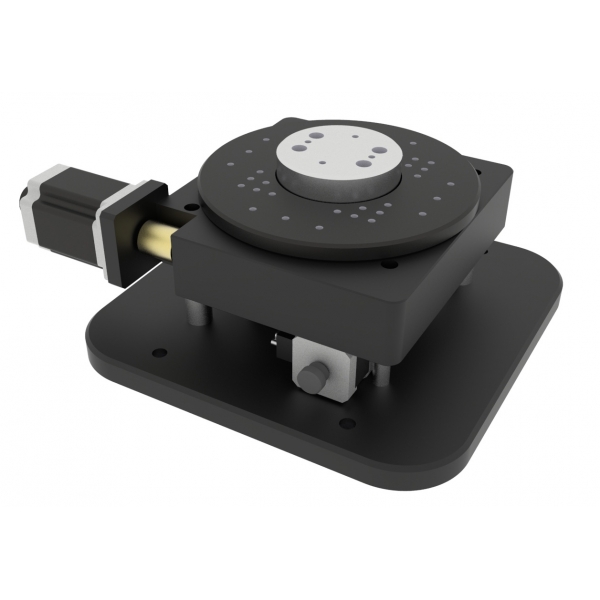

Theta-2-Theta Dual rotation system consists of two rotation stages arranged in such a way that axes of rotation of both axes are concentric. Both axes have preloaded bearings and motorized worm gear mechanism for wobble-free rotation and positioning.
Both inner and outer axes can rotate 360 degrees independently. Both stages have metric tapped holes for mounting components and sub-assemblies
|
Inner axis |
Outer axis |
mechanism |
worm gear |
worm gear |
max speed |
5 |
10 |
rotation |
n*360° |
n*360° |
repeatability |
30 arc-sec |
|
run-outs |
20 microns |
|
load weight |
5 Kg (inner axis) |
