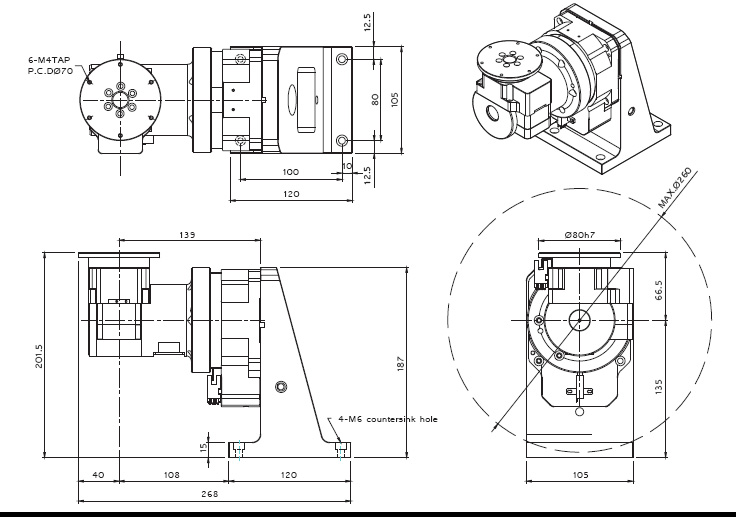

Tilt-Yaw (A/B) rotary IMDR-2D-60-100

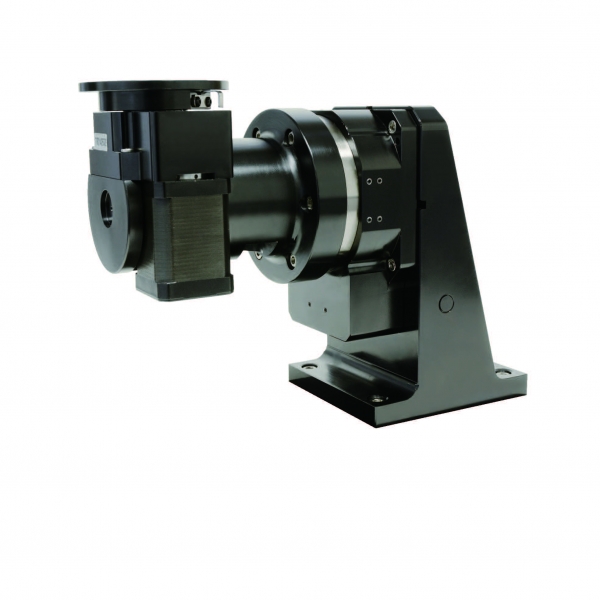

Integrated Tilt-Yaw (A/B) MDR two-axis rotary assembly provides high-speed machining capabilities for complex 3D part geometries. The precision-aligned system allows accurate positioning on a hemispherical surface. Uses cost-effective gear driven rotary stages technology.
 Tilt-Yaw (A/B) rotary ISRT-2D-0603 Tilt-Yaw (A/B) rotary SRT-0603
Direct drive (gearless) servo Incremental encoder Tilt (A axis) 190 degrees rotation Yaw (B axis) 360 degrees rotation Load 10 kg |
 Tilt-Yaw (A/B) Rotary IDTT-2D-125 TILT-YAW ROTARY DTT-125
IP65 ... IP67 rating Direct Drive (gearless) servo Absolute encoder Tilt (A axis) 220 degrees rotation Yaw (B axis) 360 degrees rotation Load 20 kg Brake option |
|
|
tilt (A axis) |
yaw (B axis) |
|
mechanism |
geared rotary stage |
geared rotary srage |
|
max speed |
30rpm |
60 rpm |
|
rotation |
320° |
n*360° |
|
accuracy |
30 arc-sec |
30 arc-sec |
|
repeatability |
10 arc-sec |
|
|
run-outs |
20 microns |
|
|
load weight |
3 Kg |
|
