XYR-BSMA-LY-110H-30x30+RTLA-060

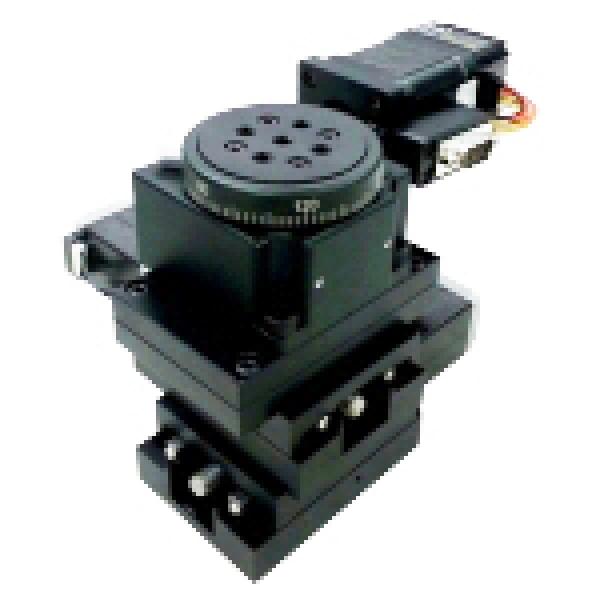

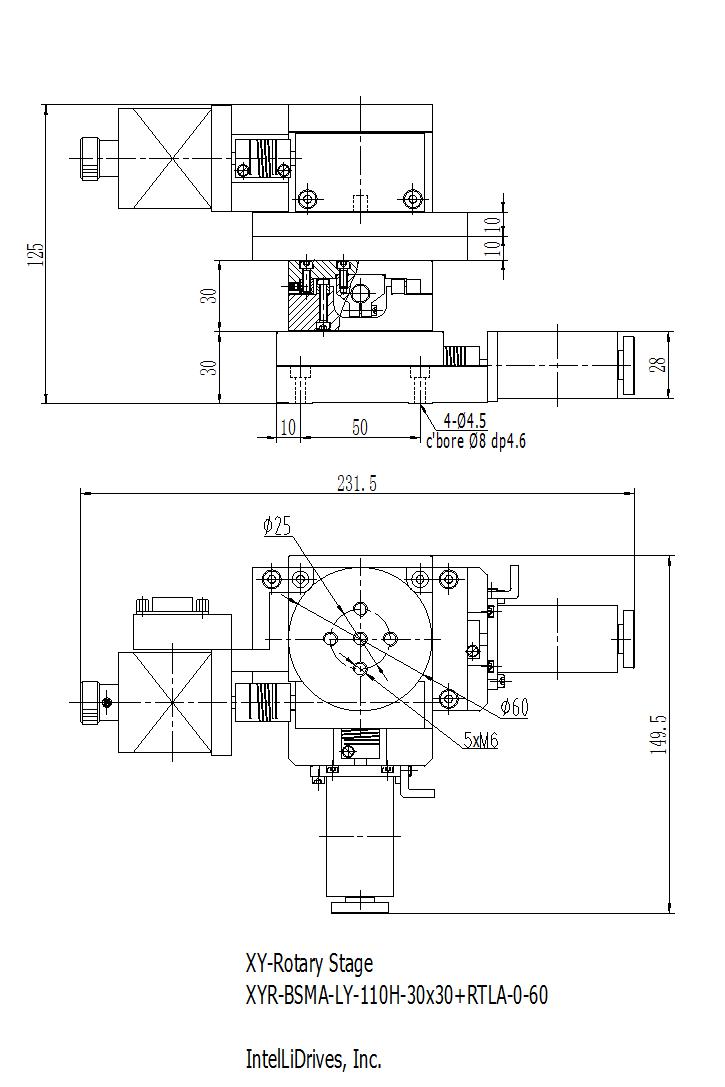

Combination of XY ball screw driven BSMA-LY-110H stages and worm gear rotary RTLA-0-60 table
- XY stroke 30x30 mm
- Unlimited rotation
XY stage |
Spec |
Rotary Stage |
Spec |
Stroke (mm) |
30 x 30 |
Rotation |
unlimited |
Repeatability (µm) |
±5 |
Repeatability (arc-sec) |
25 |
Resolution (µm) |
0.1 |
Resolution (arc-sec) |
1 |
Load capacity (kg) |
4 |
Torque (Nm) |
1 |
Velocity (mm/sec) |
20 (servo/encoder) |
Angular velocity (rpm) |
5 |
Mechanism, screw lead (mm) |
ball-screw, 1 |
Mechanism, ratio |
worm gear 90:1 |
Motor |
stepper/servo |
Motor |
stepper |
