XYR-BSMA-SA-80D-300x300-RTLA-30-100
When done selecting products to quote, click “Request Quote/Information” button.
This will take you to check-out page to send quote request to IntelLiDrives.
Combination of XY ball screw driven stages and worm gear rotary RTLA-30-100 table
- XY stroke 300x300 mm
- Unlimited rotation

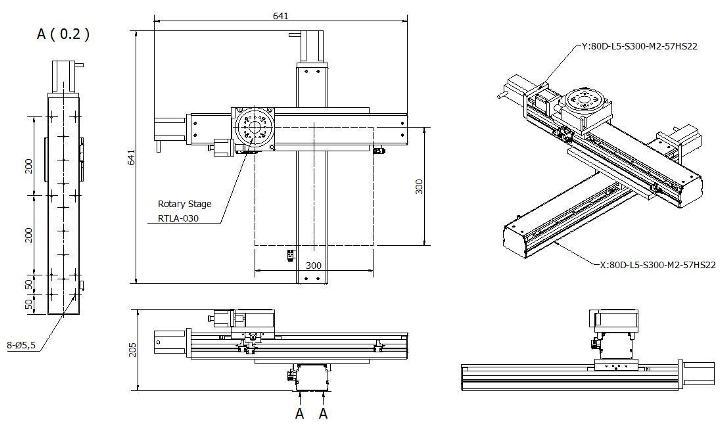

Click Below Images To Enlarge
XY stage BSMA-SA-80D-300x300 |
Spec |
Rotary Stage |
Spec |
Stroke (mm) |
300 x 300 |
Rotation |
unlimited |
Repeatability (µm) |
20 |
Repeatability (arc-sec) |
36 |
Resolution (µm) |
2 |
Resolution (arc-sec) |
1 |
Load capacity (kg) |
30 |
Torque (Nm) |
1 |
Velocity (mm/sec) |
250 |
Angular velocity (rpm) |
5 |
Mechanism, screw lead (mm) |
ball-screw, 5 |
Mechanism, ratio |
worm gear 180:1 |
Motor |
stepper/servo |
Motor |
stepper |
