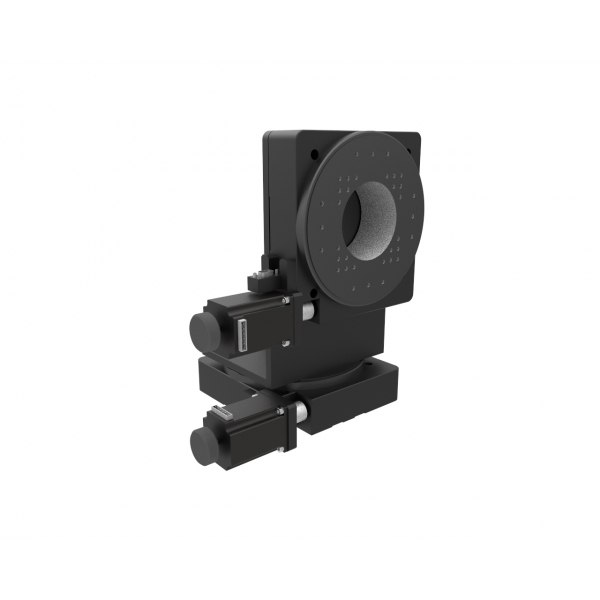

Yaw-Tilt rotary RTLA-90-200LY

Yaw Roll Pitch rotary table
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Integrated Yaw-Tilt (A/B) two-axis rotary assembly provides high-speed machining capabilities for complex 3D part geometries. The precision-aligned system allows accurate positioning on a hemispherical surface. Uses cost-effective gear driven rotary stages technology.

Click Below Images To Enlarge

Tilt-Yaw (A/B) rotary ISRT-2D-0603
Tilt-Yaw (A/B) rotary ISRT-2D-0603
Tilt-Yaw (A/B) rotary SRT-0603



Direct drive (gearless) servo

Incremental encoder

Tilt (A axis) 190 degrees rotation

Yaw (B axis) 360 degrees rotation

Load 10 kg

Tilt-Yaw (A/B) Rotary IDTT-2D-125
Tilt-Yaw (A/B) Rotary IDTT-2D-125
TILT-YAW ROTARY DTT-125



IP65 ... IP67 rating

Direct Drive (gearless) servo

Absolute encoder

Tilt (A axis) 220 degrees rotation

Yaw (B axis) 360 degrees rotation

Load 20 kg

Brake option

Tilt-Yaw (A/B) rotary IMDR-2D-60-100
Tilt-Yaw (A/B) rotary IMDR-2D-60-100
Tilt-Yaw (A/B) rotary MDR-60-100



Geared rotary stages

Stepper motor driven

Tilt (A axis) 320 degrees rotation

Yaw (B axis) 360 degrees rotation

Accuracy 30 ar-sec

Load 3 kg

Tilt-Yaw (A/B) rotary IMDC-2D-60-100
Tilt-Yaw (A/B) rotary IMDC-2D-60-100
Tilt-Yaw (A/B) rotary MDC-60-100



Geared rotary stages

Stepper motor driven

Tilt (A axis) 180 degrees rotation

Yaw (B axis) 360 degrees rotation

Accuracy 30 ar-sec

Load 3 Kg (MDC-060), 10 Kg (MDC-100)

Theta-2-Theta RTLA-30-100-90-200
Theta-2-Theta RTLA-30-100-90-200
T2T-RTLA-30-100-90-200



Inner axis load 5 kg

Outer axis load 25 kg

Stepper or servo motors

Concentric axes of rotation

Independent axes of rotation

Theta-Y-Theta-Z-RTLA-90-200-RTLA-60-150
Theta-Y-Theta-Z-RTLA-90-200-RTLA-60-150
Theta-Y-Theta-Z-RTLA-90-200-RTLA-60-150

θY axis load 5 kg

θZ axis load 25 kg

Stepper or servo motors

Independent axes of rotation

Yaw-Tilt rotary RTLA-30-100LY
Yaw-Tilt rotary RTLA-30-100LY
Yaw-Tilt rotary RTLA-30-100LY

Geared rotary stages

Stepper motor driven

Tilt axis 360 degrees rotation

Yaw axis 360 degrees rotation

Repeatability 30 ar-sec

Load 3 kg



tilt



yaw



mechanism

geared rotary stage

geared rotary srage

max speed

6 pm

6 rpm

rotation

360°

360° with slip ring

repeatability

 30 arc-sec

 30 arc-sec

motor

 Nema23

load weight

10 Kg
