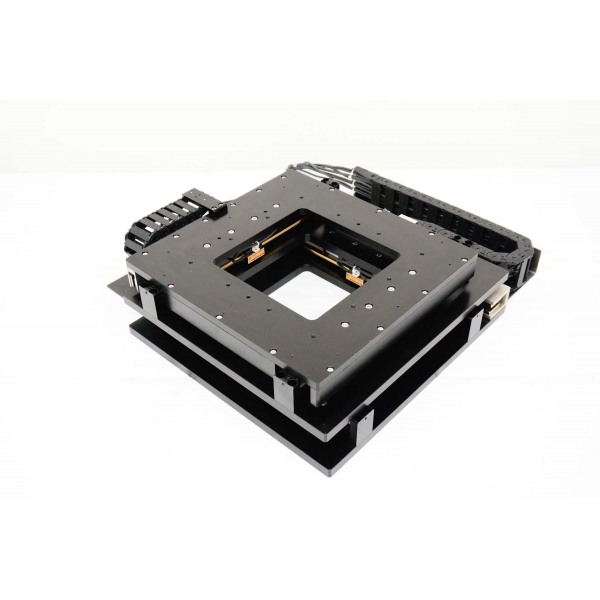

XY-OF1-UL-200x200-LM-PO

XY stage with linear motors
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

An open-frame  XY stages designed with a low profile for a wide range of automated accurate positioning applications.

The linear motor drive mechanism located on the side of the unit and offers a clear unobstructed two axes aperture to enable light or objects to pass through the center of travel.

XY table fitted with precision linear encoders 1micron resolution



Click Below Images To Enlarge

There are no related products for this product.
Model Unit

XY-OF1-UL-200x200-LM-PO-

200x200

Stroke XY mm 200x200
Aperture mm 200x200
Table top mm 380x380
Height mm 140
Accuracy micron 10
Backlash micron

0 (linear motor/encoder)

Straightness micron 10
Resolution micron 0.5; 1.0
Motor type

Linear motor/encoder (option)

Repeatability micron

1 (linear motor/encoder)

Load capacity kg 10
Table weight kg 15
Max  speed mm/sec

600 (linear motor)
