XYZR BSMA-750x750+LSZ12W+PSR150-30


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

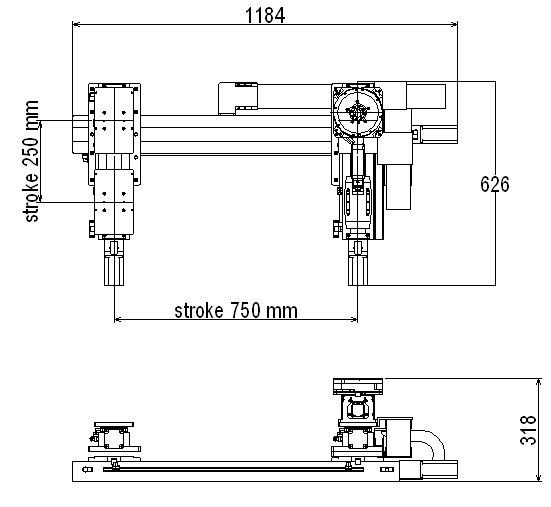

DescriptionSpecificationsDrawingsRelated

- XY stroke 750 x 250 mm

- Lift 12 mm

- Rotation unlimited

- Integrated solution

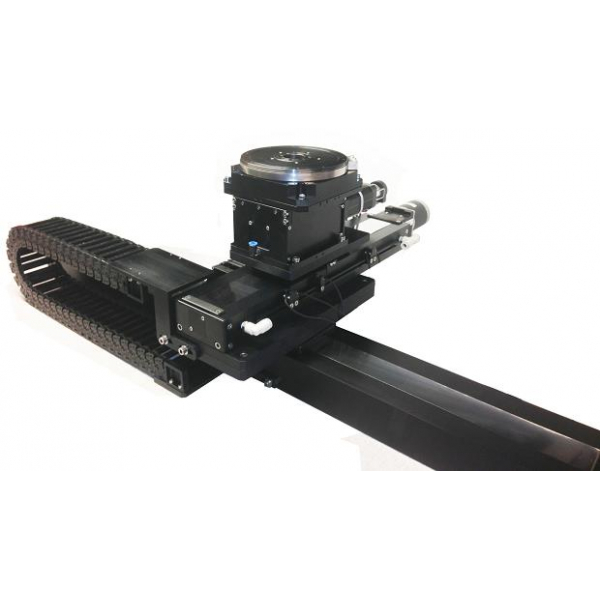

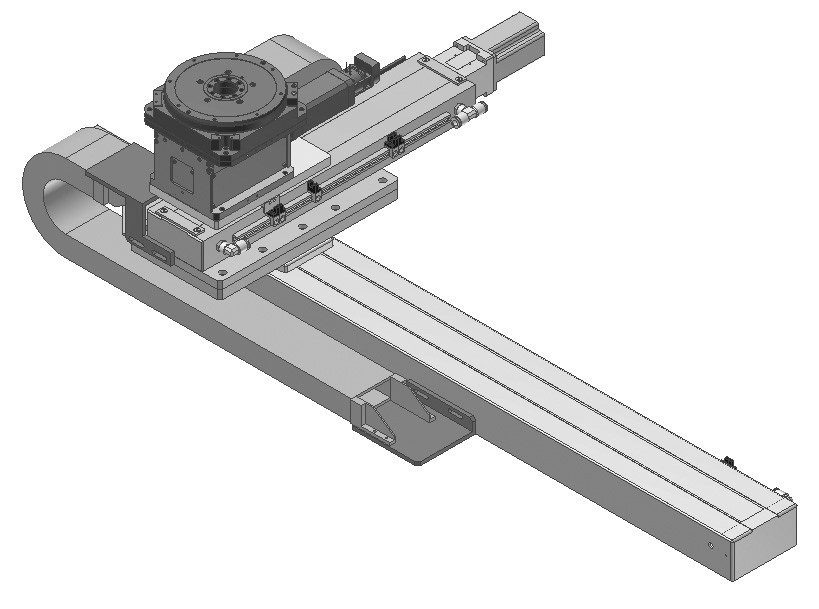

Integrated turn-key system consists of XY system BSMA motorized ball screw actuators, and Lift-Rotary stage LSZ-12+PSR-150-30 stage

Clean room version available.



Click Below Images To Enlarge

XYZR LSMA-200x200+MLVT100-25+RTHM190
XYZR LSMA-200x200+MLVT100-25+RTHM190
LSMA200+MLVT25-RTHM190

XY Stroke 200x200 mm

Lift stroke 25

Rotation unlimited

Load 10 Kg

XYZR LSMA-100x100+MLVT70-13+RTHM151
XYZR LSMA-100x100+MLVT70-13+RTHM151
LSMA100+MLVT13+RTHM151

XY Stroke 100x100 mm

Lift stroke 13

Rotation unlimited

Load 5 Kg

XYZR LSM600x600+LSMZ90-12+RTHM100
XYZR LSM600x600+LSMZ90-12+RTHM100
LSM600+LSMZ12+RTHM100

XY Stroke 450x450 mm

Lift stroke 12

Rotation unlimited

Load 5 Kg

XY Stage

BSMA-110



 Spec

Lift Stage

LSZ-12W

 Spec

Rotary Stage

PSR150-30

 Spec

Stroke (mm)

750x250

Lift (mm)

12

Rotation

unlimited

Repeatability (µm)

5

Repeatability (µm)

2

Repeatability (arc-sec)

2

Resolution (µm)

1

Resolution (arc-sec)

1

Resolution (arc-sec)

2

Load capacity (kg)

12

Bearings

ball

Bearings

ball

Velocity (mm/sec)

400

Max velocity (mm/sec)

12

Angular velocity (rpm)

300

Mechanism,

screw lead (mm)



ball screw

20

Mechanism

ball-screw/wedge

Mechanism

direct drive

rotary motor

Motor

stepper servo

Motor

stepper

servo

Motor

servo
