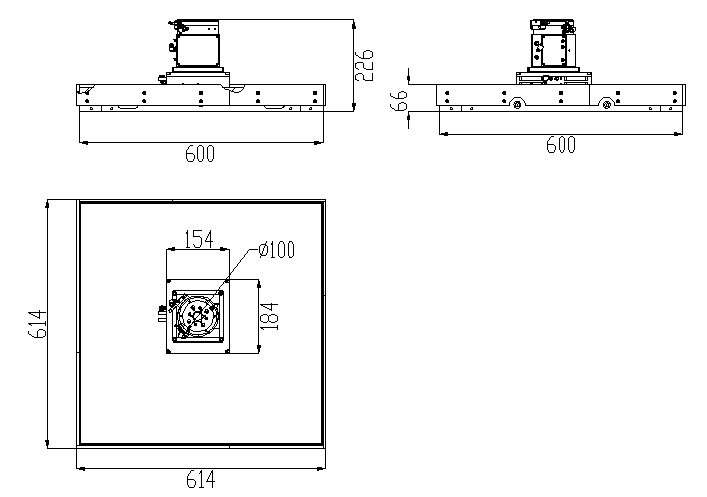

XYZR LSM600x600+LSMZ90-12+RTHM100


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Combination of XY Planar Air bearing table with RotoLinear Air bearing Lift-Rotary stages.



 - XY stroke 450x450 mm

 - Lift 12 mm

 - Unlimited rotation

Click Below Images To Enlarge

XYZR LSMA-200x200+MLVT100-25+RTHM190
XYZR LSMA-200x200+MLVT100-25+RTHM190
LSMA200+MLVT25-RTHM190

XY Stroke 200x200 mm

Lift stroke 25

Rotation unlimited

Load 10 Kg

XYZR LSMA-100x100+MLVT70-13+RTHM151
XYZR LSMA-100x100+MLVT70-13+RTHM151
LSMA100+MLVT13+RTHM151

XY Stroke 100x100 mm

Lift stroke 13

Rotation unlimited

Load 5 Kg

XYZR BSMA-750x750+LSZ12W+PSR150-30
XYZR BSMA-750x750+LSZ12W+PSR150-30
XYZR-BSMA+LSZ12+PSR150

XY Stroke 750x250 mm

Lift stroke 12 mm

Rotation unlimited

Load 10 Kg

XY Planar System



 Spec

Lift Stage

L90-12

 Spec

Rotary Stage

R100

 Spec

Stroke (mm)

450 x 450

Lift (mm)

12

Rotation

unlimited

Repeatability (µm)

3

Repeatability (µm)

2

Repeatability (arc-sec)

1

Resolution (µm)

1

Resolution (arc-sec)

1

Resolution (arc-sec)

1

Load capacity (kg)

5

Bearing

air

Bearing

air

Velocity (mm/sec)

500

Max velocity (mm/sec)

50

Angular velocity (rpm)

120

Mechanism



direct drive

linear motor

Mechanism

direct drive

linear motor

Mechanism,

ratio

direct drive

rotary motor

Motor

stepper servo

Motor

stepper

servo

Motor

stepper

servo
