Rotary actuator RTHM-16 (Ultrathin)


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

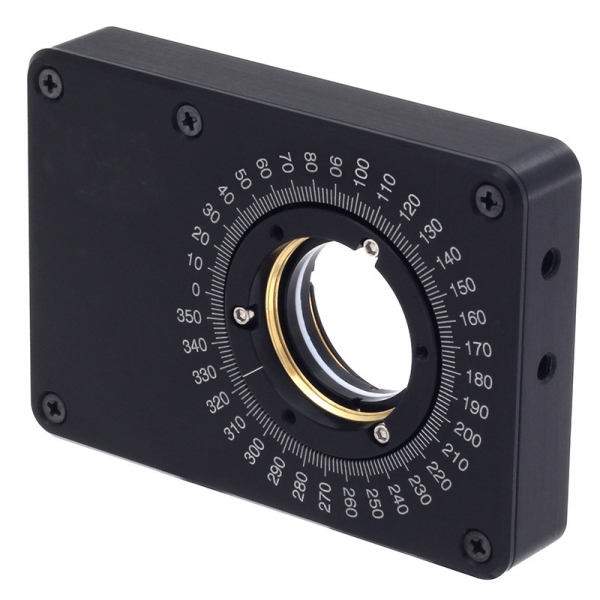

Ultra-thin motorized rotary actuator RTHM-16 (polarizer mount) provides smooth, high accuracy, high repeatability and stability continuous 360° rotation of the polarization optical components with diameters up to 1’ (25.4mm) or 1/2’ (12.7mm).

Ultra-thin profile of the stage minimizes difficulties of polarizers integration  in optical set-ups and in systems with small gaps between elements.

Motorized polarizer rotator has a low optical axis height relative to the mounting base.

There are two fluoroplastic rings and two retaining rings for 1’ (25.4mm) optics fixing which are included in standard stage set.

Various mounting options of the Motorized Polarizer Rotator are available.

Stage is driven with stepper motor with a gear box.



Click Below Images To Enlarge



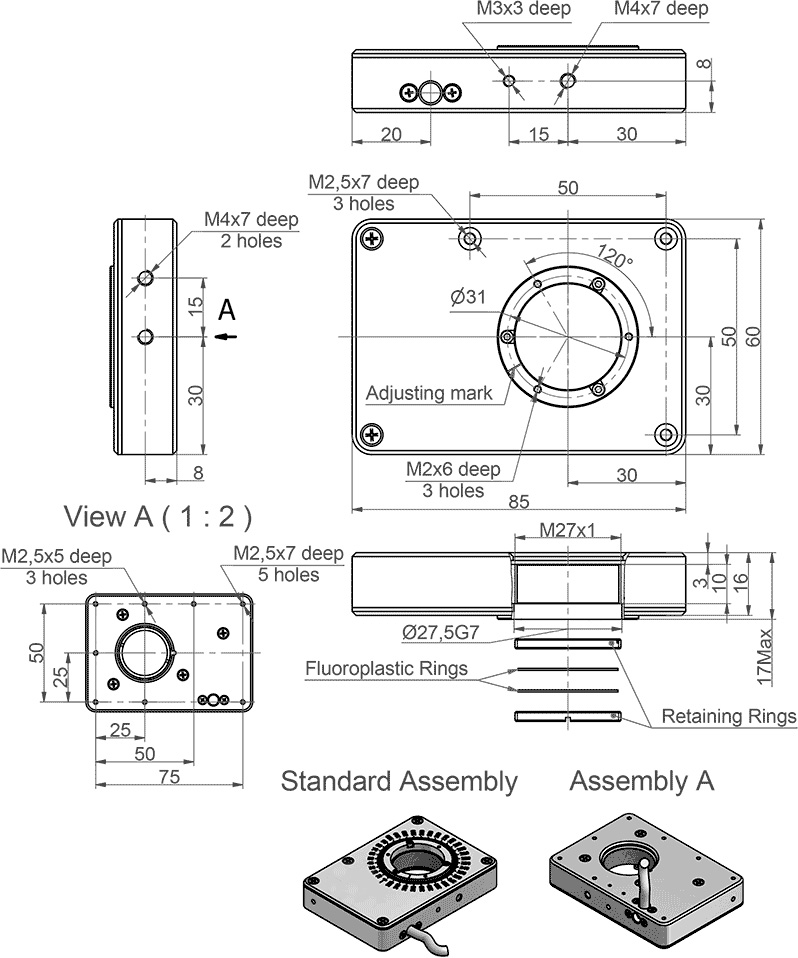

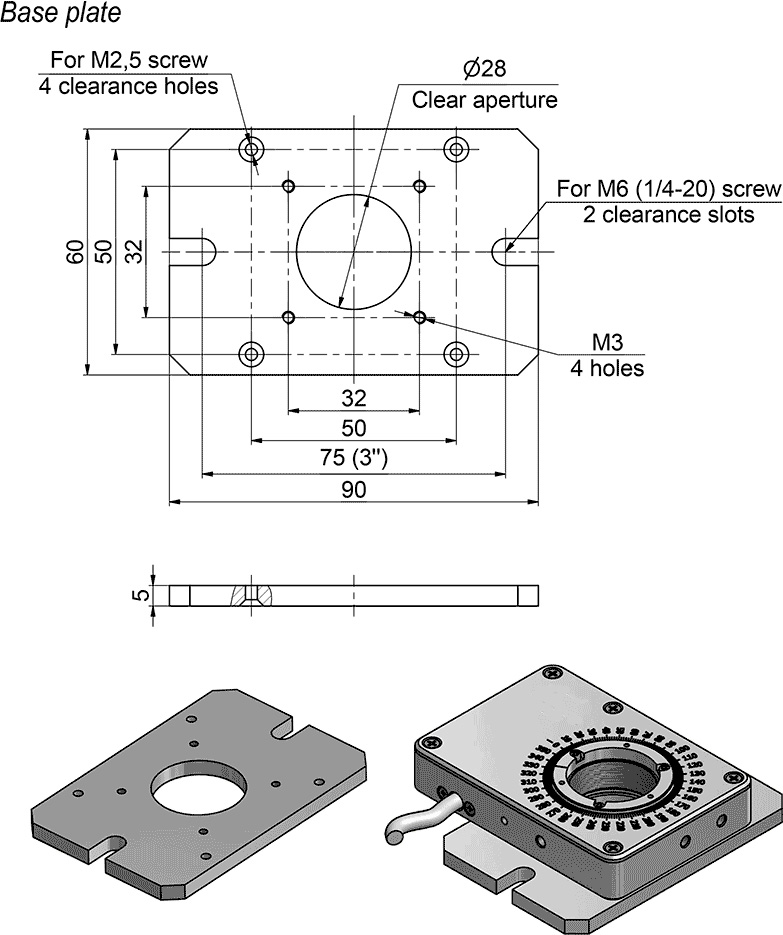

INSTALLATION

Rotary Table RTLA-30-100
Rotary Table RTLA-30-100
RTLA-30-100



Diameter 100 mm

Height 45 mm

Load 5 Kg

Rotary stage RTHM-151
Rotary stage RTHM-151
RTHM-151



Diameter 60 mm

Aperture 30 mm

Height 29 mm

Rotary stage RTHM-174
Rotary stage RTHM-174
RTHM-174



Diameter 40 mm

Aperture 11 mm

Height 25 mm

Rotary stage RTHM-50-100J
Rotary stage RTHM-50-100J
RTHM-50-100J



Diameter 100 mm

Aperture 50 mm

Height 35 mm

Rotary Table RTLA-0-60
Rotary Table RTLA-0-60
RTLA-0-60



Diameter 60 mm

Height 45 mm

Load 2 Kg

Rotary Table RTLA-8-30
Rotary Table RTLA-8-30
RTLA-8-30

Diameter 30 mm

Height 30 mm

Load 1 Kg

Rotary Table RTLA-60-150LP
Rotary Table RTLA-60-150LP
RTLA-60-150LP

Diameter 150 mm

Height 50 mm

Load 10 Kg

Parameter

Unit

RTHM-16







Rotation range

deg

Continuous 360◦

Resolution (full step)

arc-min

0.75

Max speed

RPM

4 RPM

Repeatability (unidirectional)

Arc-sec

15

Eccentricity

micron

10

Load capacity

axial / radial

Kg



0.5/1

Stage weight

Kg

0.25

Motor type



Stepper motor with gear box

Drive mechanism



Ground worm gear 90:1

Home sensor



one, hall type

Construction



black anodized aluminum
