XY-OF-200x200J

XY stage
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

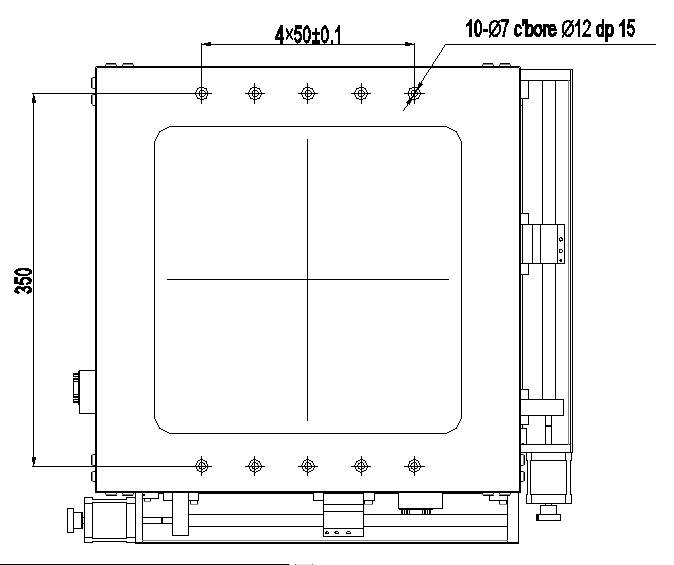

DescriptionSpecificationsDrawingsRelated

Open-frame XY stages designed with a low profile for a wide range of automated accurate positioning in microscope-based applications. The drive mechanism located on the side of the unit and offers a clear unobstruced two axes aperture to enable light or objects to pass through the center of travel.

Click Below Images To Enlarge













XY-OF-15x15LY
XY-OF-15x15LY
XY-OF-LY-15x15

Stroke 15x15 mm

Aperture 50x50 mm

Table top 90x90 mm

Load 10 Kg

XY-OF-50x50LY
XY-OF-50x50LY
XY-OF-LY-50x50

Stroke 50x50 mm

Aperture 50x50 mm

Table top 155x155 mm

Load 10 Kg

XY-OF-100x100LY
XY-OF-100x100LY
XY-OF-LY-100x100

Stroke 100x100 mm

Aperture 188x188 mm

Table top 300x300 mm

Load 40 Kg

XY-OF-75x75ST
XY-OF-75x75ST
XY-OF-ST-75x75

Stroke 75x75 mm

Aperture 90x90 mm

Table top 150x150 mm

Load 20 Kg

XY-OF-100x100ST
XY-OF-100x100ST
XY-OF-ST-100x100

Stroke 100x100 mm

Aperture 100x100 mm

Table top 175x175 mm

Load 30 Kg

XY-OF-UL-200x200
XY-OF-UL-200x200
XY-OF-UL-200x200

Stroke 200x200 mm

Aperture 200x200 mm

Table top 300x300 mm

Load 30 Kg

XY-OF-UL-280x280
XY-OF-UL-280x280
XY-OF-UL-280x280

Stroke 280x280 mm

Aperture 260x260 mm

Table top 435x435 mm

Load 30 Kg

XY-OF-UL-350x350
XY-OF-UL-350x350
XY-OF-UL-350x350

Stroke 350x350 mm

Aperture 335x335 mm

Table top 515x515 mm

Load 40 Kg

Model Unit

XY-OF-200x200J

Stroke XY mm 200x200
Screw lead mm

4

Aperture mm 288x288
Table top mm 400x400
Height mm 80
Backlash micron 15
Straightness micron 20
Resolution (translated) micron 1
Motor NEMA17

stepper, stepper/encoder, servo/encoder

Repeatability micron <10
Load capacity kg

20

Table weight kg 25
Max  speed mm/sec

80
