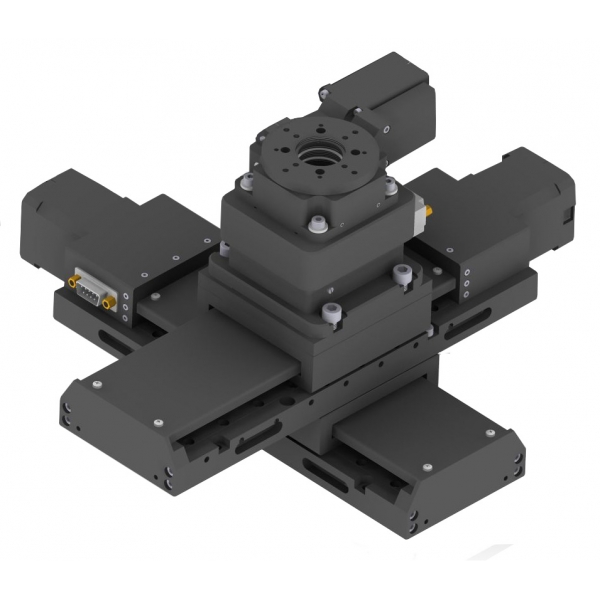

XYZR LSMA-100x100+MLVT70-13+RTHM151


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.

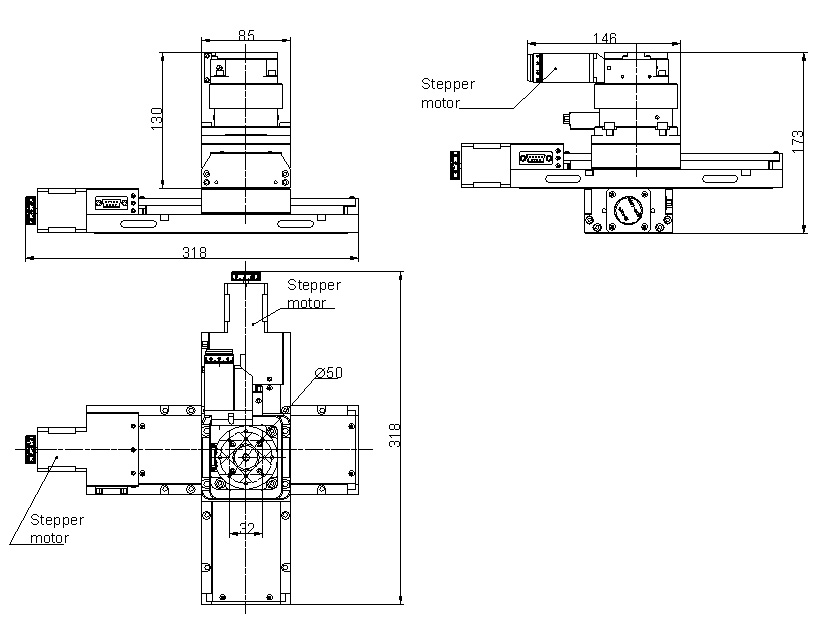

DescriptionSpecificationsDrawingsRelated

Combination of XY lead-screw driven LSMA XY stages with Lift MLVT stages and worm gear rotary RTHM table



 - XY stroke 100x100 mm

 - Lift 13 mm

 - Unlimited rotation

Click Below Images To Enlarge

XYZR LSMA-200x200+MLVT100-25+RTHM190
XYZR LSMA-200x200+MLVT100-25+RTHM190
LSMA200+MLVT25-RTHM190

XY Stroke 200x200 mm

Lift stroke 25

Rotation unlimited

Load 10 Kg

XYZR LSM600x600+LSMZ90-12+RTHM100
XYZR LSM600x600+LSMZ90-12+RTHM100
LSM600+LSMZ12+RTHM100

XY Stroke 450x450 mm

Lift stroke 12

Rotation unlimited

Load 5 Kg

XYZR BSMA-750x750+LSZ12W+PSR150-30
XYZR BSMA-750x750+LSZ12W+PSR150-30
XYZR-BSMA+LSZ12+PSR150

XY Stroke 750x250 mm

Lift stroke 12 mm

Rotation unlimited

Load 10 Kg

XY stage

LSMA-200

 Spec

Lift Stage

MLVT-70-13

 Spec

Rotary Stage

RTHM-151

 Spec

Stroke (mm)

100 x 100

Lift (mm)

13

Rotation

unlimited

Repeatability (µm)

1

Repeatability (µm)

2

Repeatability (arc-sec)

20

Resolution (µm)

0.3

Resolution (arc-sec)

1

Resolution (arc-sec)

0.5

Load capacity (kg)

6

Lift translation (mm/rev)

1

Torque (Nm)

0.5

Velocity (mm/sec)

20 (servo)

Max velocity (mm/sec)

20

Angular velocity (rpm)

8

Mechanism,

screw lead (mm)

lead-screw

0.5

Mechanism,

screw lead (mm)

direct drive screw

1

Mechanism,

ratio

worm gear

180:1

Motor

stepper servo

Motor

stepper

Motor

stepper

servo
