XY-OF-75x75J

microscope XY stage
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

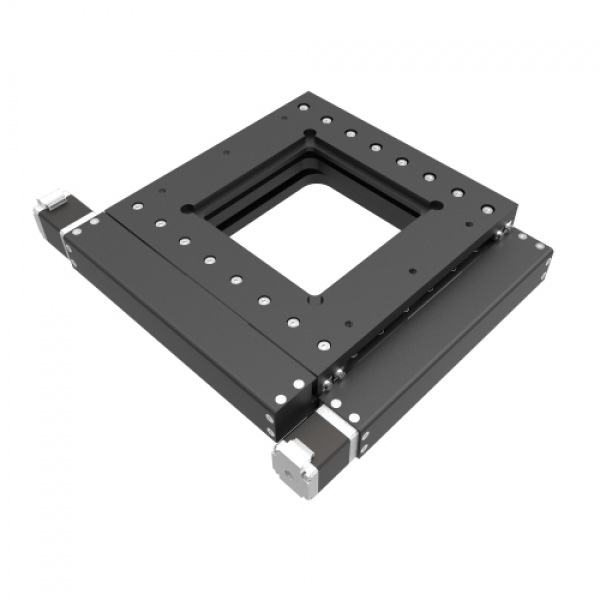

Open-frame XY stages designed with a low profile for a wide range of automated accurate positioning in microscope-based applications. The drive mechanism located on the side of the unit and offers a clear unobstruced two axes aperture to enable light or objects to pass through the center of travel.

Click Below Images To Enlarge






XY-OF-15x15LY
XY-OF-15x15LY
XY-OF-LY-15x15

Stroke 15x15 mm

Aperture 50x50 mm

Table top 90x90 mm

Load 10 Kg

XY-OF-50x50LY
XY-OF-50x50LY
XY-OF-LY-50x50

Stroke 50x50 mm

Aperture 50x50 mm

Table top 155x155 mm

Load 10 Kg

XY-OF-100x100LY
XY-OF-100x100LY
XY-OF-LY-100x100

Stroke 100x100 mm

Aperture 188x188 mm

Table top 300x300 mm

Load 40 Kg

XY-OF-200x200J
XY-OF-200x200J
XY-OF-200x200J

Stroke 200x200 mm

Aperture 288x288 mm

Table top 400x400 mm

Load 20 Kg

XY-OF-300x300J
XY-OF-300x300J
XY-OF-300x300J

Stroke 300x300 mm

Aperture 388x388 mm

Table top 500x500 mm

Load 30 Kg

XY Gantry Open Frame BEMA45-300x300
XY Gantry Open Frame BEMA45-300x300
XY-OF-W45-300x300

Stroke 300x300 mm

Aperture 300x300 mm

Table top 380x380 mm

Load 15 Kg

XY-OF-100x100J
XY-OF-100x100J
XY-OF-J-100x100

Stroke 100x100 mm

Aperture 110x110 mm

Table top 200x200 mm

Load 10 Kg

XY-OF-150x150J
XY-OF-150x150J
XY-OF-J-150x150

Stroke 150x150 mm

Aperture 200x200 mm

Table top 300x300 mm

Load 10 Kg

XY-65-10x10AUT
XY-65-10x10AUT
XY-65-10x10AUT

Linear motors
Stroke 10x10 mm

Resolution 0.5 µm

Stage 65x65 mm

Load 2.5 Kg

XY-OF1-UL-200x200-LM-PO
XY-OF1-UL-200x200-LM-PO
XY-OF1-UL-200x200-LM-PO

Linear motors
Stroke 200x200 mm

Aperture 200x200 mm

Load 10 Kg

XY-OF-400x400J
XY-OF-400x400J
XY-OF-400x400J

Stroke 400x400 mm

Aperture 450x450 mm

Table top 600x600 mm

Load 30 Kg

XY-OF-600x600J
XY-OF-600x600J
XY-OF-600x600J

Stroke 600x600 mm

Aperture 800x800 mm

Table top 1000x1000 mm

Load 60 Kg

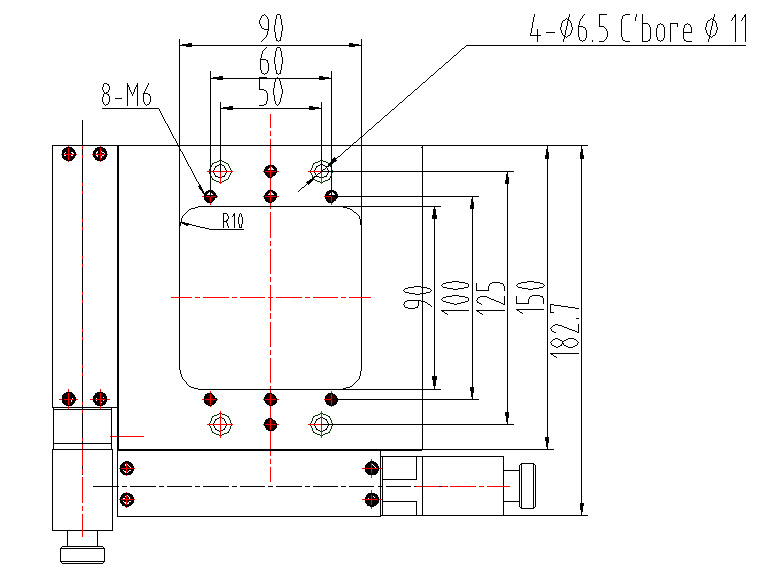

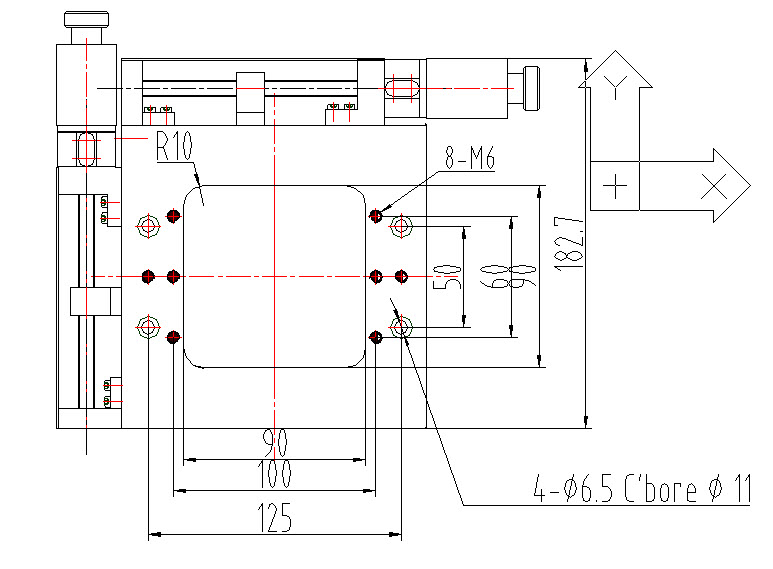

Model Unit

XY-OF-75x75J

Stroke XY mm 75x75
Screw lead mm

ballscrew 1, 4
leadscrew 0.5

Aperture mm 90x90
Table top mm 150x150
Height mm 45
Backlash micron <5
Resolution micron 0.5 (with encoder)
Motor NEMA11

stepper, stepper/encoder

Repeatability micron <5
Load capacity kg

10

Table weight kg 3.5
Max  speed mm/sec

80 with servo motor and screw and 4 mm lead
5 with stepper motor and screw 0.5 mm lead
