XY-OF-300x300J

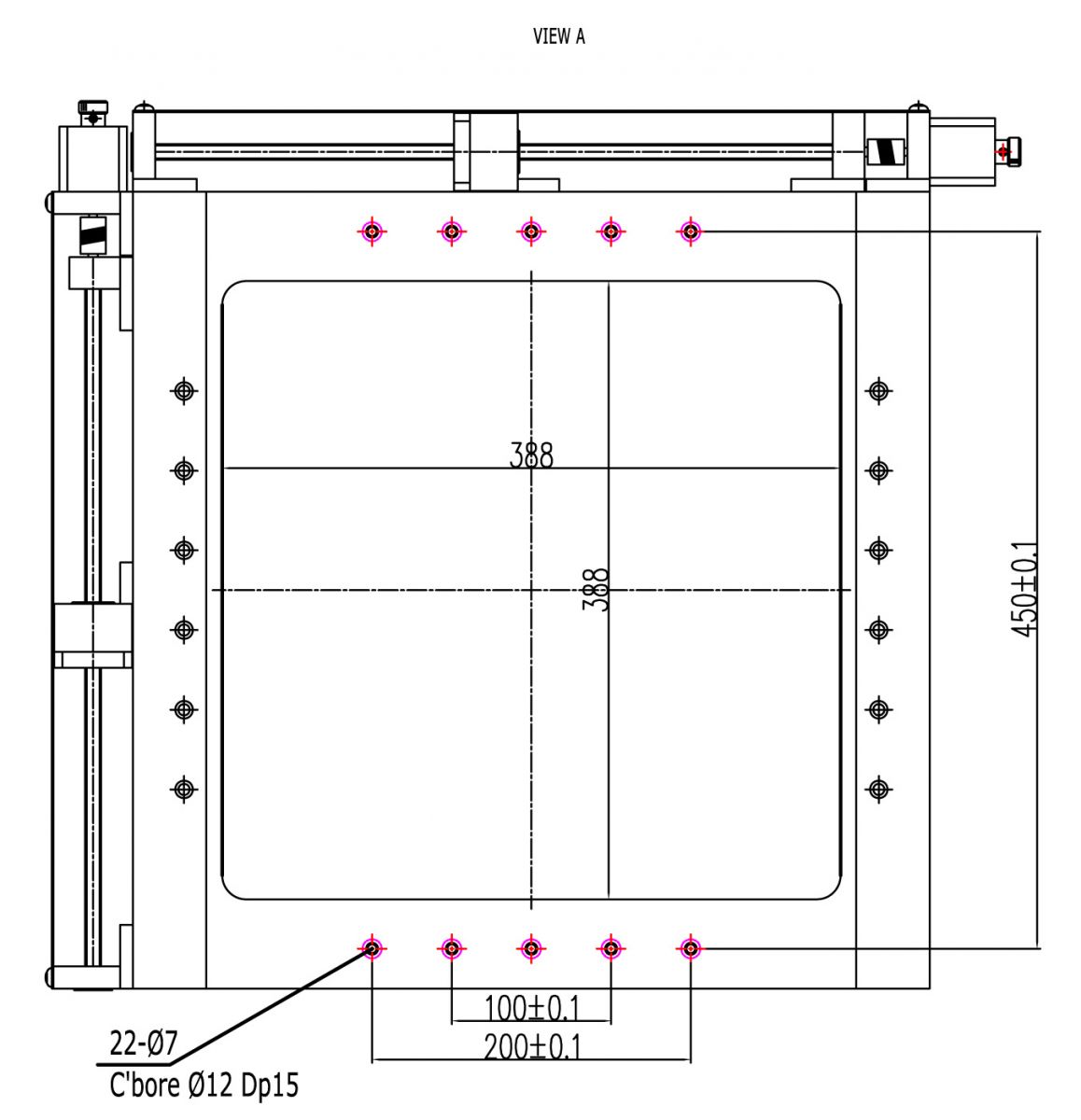

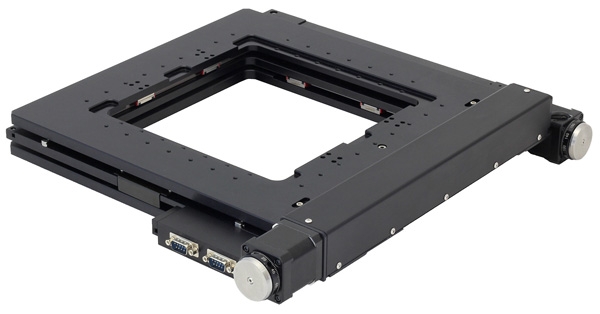

Open-frame XY stages designed with a low profile for a wide range of automated accurate positioning in microscope-based applications. The drive mechanism located on the side of the unit and offers a clear unobstruced two axes aperture to enable light or objects to pass through the center of travel.
 XY-OF-15x15LY XY-OF-LY-15x15 Stroke 15x15 mm Aperture 50x50 mm Table top 90x90 mm Load 10 Kg |
 XY-OF-50x50LY XY-OF-LY-50x50 Stroke 50x50 mm Aperture 50x50 mm Table top 155x155 mm Load 10 Kg |
 XY-OF-100x100LY XY-OF-LY-100x100 Stroke 100x100 mm Aperture 188x188 mm Table top 300x300 mm Load 40 Kg |
 XY-OF-75x75ST XY-OF-ST-75x75 Stroke 75x75 mm Aperture 90x90 mm Table top 150x150 mm Load 20 Kg |
 XY-OF-100x100ST XY-OF-ST-100x100 Stroke 100x100 mm Aperture 100x100 mm Table top 175x175 mm Load 30 Kg |
 XY-OF-UL-200x200 XY-OF-UL-200x200 Stroke 200x200 mm Aperture 200x200 mm Table top 300x300 mm Load 30 Kg |
XY-OF-UL-280x280 XY-OF-UL-280x280 Stroke 280x280 mm Aperture 260x260 mm Table top 435x435 mm Load 30 Kg |
XY-OF-UL-350x350 XY-OF-UL-350x350 Stroke 350x350 mm Aperture 335x335 mm Table top 515x515 mm Load 40 Kg |
 XY-OF-200x200J XY-OF-200x200J Stroke 200x200 mm Aperture 288x288 mm Table top 400x400 mm Load 30 Kg |
| Model | Unit |

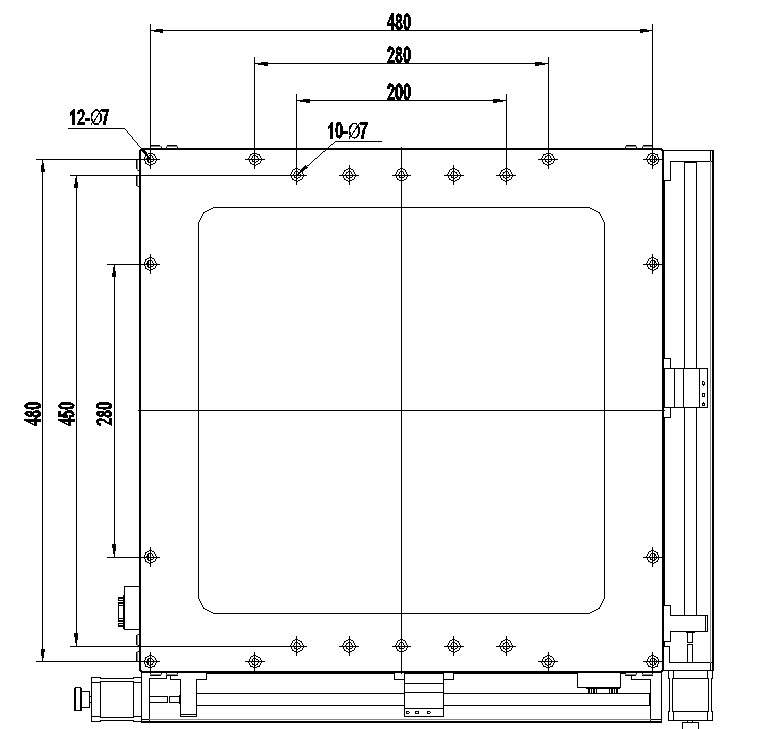

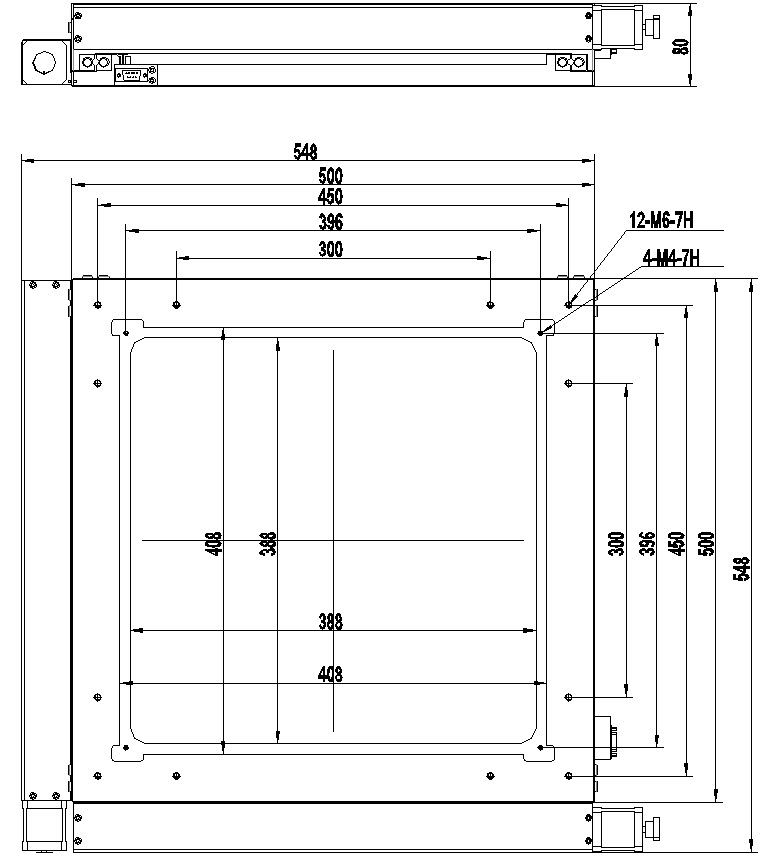

XY-OF-300x300J |
| Stroke XY | mm | 300x300 |
| Screw lead | mm |
4 |
| Aperture | mm | 388x388 |
| Table top | mm | 500x500 |
| Height | mm | 80 |
| Backlash | micron | 10 |
| Straightness | micron | 20 |
| Resolution | micron | 1 |
| Motor NEMA17 |
stepper, stepper/encoder, servo/encoder |
|
| Repeatability | micron | 5 |
| Load capacity | kg |
30 |
| Table weight | kg | 35 |
| Max speed | mm/sec |
80 with servo motor |
