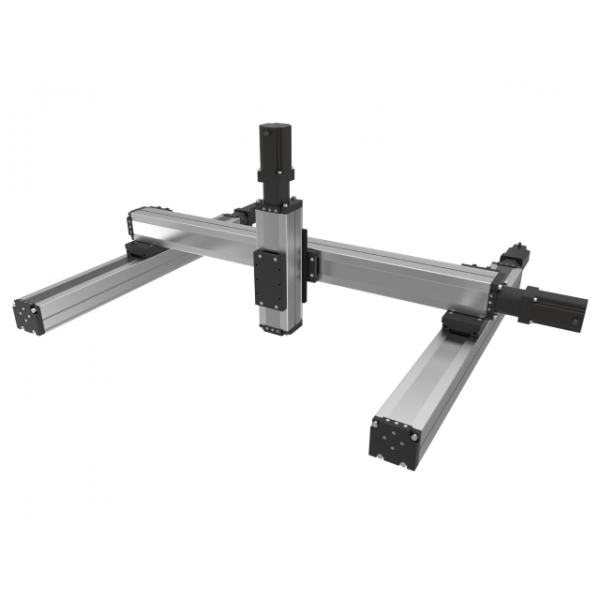

XYZ GANTRY BSMAE-F80L-600x600x100


Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

Low profile motorized actuators with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, low profile unit. They are ideal for space-critical applications such as optical, laser applications and vacuum operation.

Easy to program with VISUAL IMAC icon based controller. No need to write a single line of code!




Click Below Images To Enlarge

XY-GA-86-X600-Y600
XY-GA-86-X600-Y600
XY-GA-86-X600-Y600

STROKE 600 x 600 mm

Load 12 kg

XY-GA-86-X800-Y800
XY-GA-86-X800-Y800
XY-GA-86-X800-Y800

STROKE 800 x 800 mm

Load 12 kg

XY-GA-86-X1000-Y1000
XY-GA-86-X1000-Y1000
XY-GA-86-X1000-Y1000

STROKE 1000 x 1000 mm

Load 12 kg

XYZ-GA-860-X600-Y600-Z150
XYZ-GA-860-X600-Y600-Z150
GA-860-X600-Y600-Z150

STROKE 600 x 600 x 150 mm

Load 12 kg

XYZ-GA-860-X800-Y600-Z150
XYZ-GA-860-X800-Y600-Z150
GA-860-X800-Y600-Z150

STROKE 800 x 600 x 150 mm

Load 12 kg

XYZ-GA-860-X800-Y800-Z150
XYZ-GA-860-X800-Y800-Z150
GA-860-X800-Y800-Z150

STROKE 800 x 800 x 150 mm

Load 12 kg

XYZ-GA-860-X1000-Y800-Z150
XYZ-GA-860-X1000-Y800-Z150
GA-860-X1000-Y800-Z150

STROKE 1000 x 800 x 150 mm

Load 12 kg

XYZ-GA-860-X1000-Y1000-Z150
XYZ-GA-860-X1000-Y1000-Z150
GA-860-X1000-Y1000-Z150

STROKE 1000 x 1000 x 150 mm

Load 12 kg

XY-GA-28-X600-Y600
XY-GA-28-X600-Y600
GA-28-X600-Y600

STROKE 600 x 600 mm

Load 25 kg

XY-GA-28-X800-Y600
XY-GA-28-X800-Y600
GA-28-X800-Y600

STROKE 800 x 600 mm

Load 25 kg

XY-GA-28-X800-Y800
XY-GA-28-X800-Y800
GA-28-X800-Y800

STROKE 800 x 800 mm

Load 25 kg

XYZ-GA-288-X600-Y600-Z150
XYZ-GA-288-X600-Y600-Z150
GA-288-X600-Y600-Z150

STROKE 600 x 600 x 150 mm

Load 12 kg

XYZ-GA-288-X800-Y600-Z150
XYZ-GA-288-X800-Y600-Z150
GA-288-X800-Y600-Z150

STROKE 800 x 600 x 150 mm

Load 25 kg

XYZ-GA-288-X800-Y800-Z150
XYZ-GA-288-X800-Y800-Z150
GA-288-X800-Y800-Z150

STROKE 800 x 800 x 150 mm

Load 25 kg

XYZ-GA-288-X1000-Y1000-Z150
XYZ-GA-288-X1000-Y1000-Z150
GA-288-X1000-Y1000-Z150

Stroke 1000x1000x150 mm

Load 25 kg

Gantry XY-GA-BSMA-140H-300x300-HORIZONTAL
Gantry XY-GA-BSMA-140H-300x300-HORIZONTAL
XY-GA-140H-300x300-HOR

STROKE X300 x Y300 mm

Load 15 kg

Overhead Gantry XYZ-OG-LOW-BSMA-LY-140H-300x300-110-50
Overhead Gantry XYZ-OG-LOW-BSMA-LY-140H-300x300-110-50
XYZ-OG-LOW-300x300x50

STROKE X300 x Y300 x Z50 mm

Load 5 kg

XY-OT-INV-BSMA-LY-140H-300x300
XY-OT-INV-BSMA-LY-140H-300x300
XY-GA-INV-140H-300x300

STROKE X300 x Y300 mm

Load 10 kg

XYZ Gantry BEMA-W60-1000x1000x300
XYZ Gantry BEMA-W60-1000x1000x300
XYZ_Gantry_BEMA-W60-1000x1000x300

Stroke 1000x1000x300  mm

Load 30 kg (XY), 2 kg (Z)
Repeatability 50 microns
Synchronized belt mechanism

XY-BSMAE-F40S
XY-BSMAE-F40S
XY-BSMAE-F40S

XY stroke
100x100/200x200/300x300
Stepper/Servo/Smart motor

Load 5 Kg



XY-BSMAE-F40X
XY-BSMAE-F40X
XY-BSMAE-F40X

XY stroke
100x100/200x200/300x300
Stepper/Servo/Smart motor

Load 5 Kg



XZ-BSMAE-F40T
XZ-BSMAE-F40T
XZ-BSMAE-F40T

XZ stroke
100x100/200x200/300x300
Stepper/Servo/Smart motor

Load 5 Kg



XYZ-BSMAE-F40T
XYZ-BSMAE-F40T
XYZ-BSMAE-F40T

XYZ stroke
100x100x100/200x200x200
Stepper/Servo/Smart motor

Load 3 Kg



XYZ-BSMAE-F40X
XYZ-BSMAE-F40X
XYZ-BSMAE-F40X

XYZ stroke
100x100x100/200x200x200
Stepper/Servo/Smart motor

Load 3 Kg



XYZ GANTRY BSMAE-F40L-300x300x100
XYZ GANTRY BSMAE-F40L-300x300x100
XYZ-BSMAE-F40L-300x300x100

XYZ stroke
300x300x100
Stepper/Servo/Smart motor

Load 10 Kg



XYZ GANTRY BSMAE-F40L-600x600x100
XYZ GANTRY BSMAE-F40L-600x600x100
XYZ-BSMAE-F40L-600x600x100

XYZ stroke
600x600x100
Stepper/Servo/Smart motor

Load 10 Kg



XYZ Stroke

mm

600x600x100

Screw lead

mm

5, 10

Motor mounts size



Nema17 (Nema23)

Motor type



Stepper (standard)

Servo/encoder

Load

kg

15

Repeatability

micron

30

Stage weight

kg

9

Speed

mm/sec

50 - 100 (stepper)

100 - 200 (servo)



Open loop Micro-stepping resolution = screw_lead/200/microsteps_per_step

where: motor has 200 full steps/rev;

driver micro-stepping resolution 64, 128, 256 micro-steps/step



Closed loop servo resolution = screw_lead/encoder_cpr/4

where: encoder_cpr is number of encoder counts per revolution;

4 is post-quad processing in the motion controller
