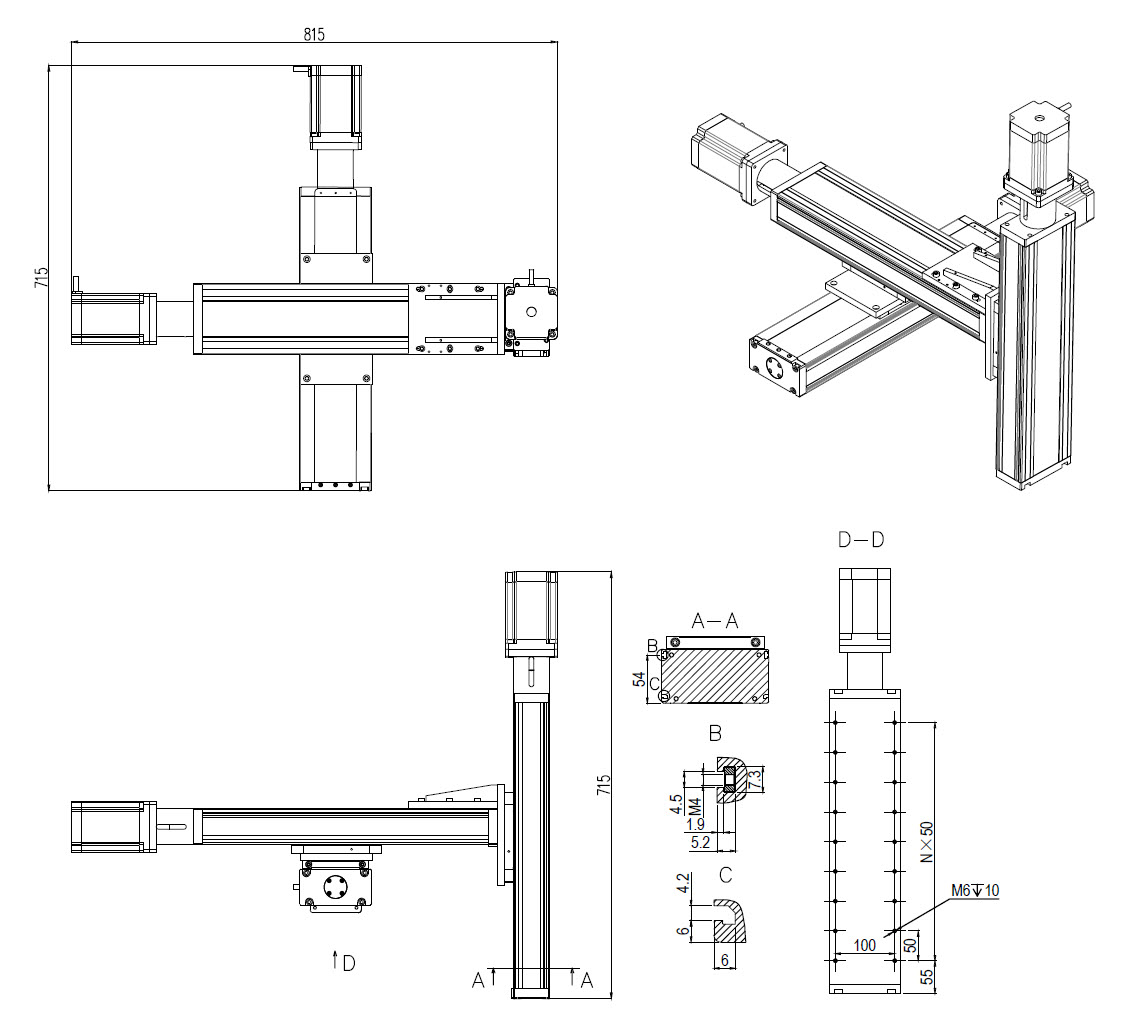

XYZ-ROBOT-F120-300x300x300

XYZ Robot
Click to enlarge
Quantity:

Add To Quote Cart

Add the selected product(s) to the quote request cart by clicking the “Add to Quote" button on any product page. You may continue viewing other products.

If you want to add this product to the quote, press the Add To Quote Cart button *BEFORE* pressing the Send Quote/Information Request button


Send Quote/Information Request
When done selecting products to quote, click “Request Quote/Information” button. This will take you to check-out page to send quote request to IntelLiDrives.
DescriptionSpecificationsDrawingsRelated

CARTESIAN XYZ ROBOT with precision ball screw provide exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 1 micron in a very compact, format. They are ideal for pick&place and lab automation applications.

Easy to program with VISUAL IMAC icon based controller. No need to write a single line of code!

Click Below Images To Enlarge

300x300x300 mm XYZ travel

Gantry XY-GA-BSMA-140H-300x300-HORIZONTAL
Gantry XY-GA-BSMA-140H-300x300-HORIZONTAL
XY-GA-140H-300x300-HOR

STROKE X300 x Y300 mm

Load 15 kg

Overhead Gantry XYZ-OG-LOW-BSMA-LY-140H-300x300-110-50
Overhead Gantry XYZ-OG-LOW-BSMA-LY-140H-300x300-110-50
XYZ-OG-LOW-300x300x50

STROKE X300 x Y300 x Z50 mm

Load 5 kg

XY-OT-INV-BSMA-LY-140H-300x300
XY-OT-INV-BSMA-LY-140H-300x300
XY-GA-INV-140H-300x300

STROKE X300 x Y300 mm

Load 10 kg

XYZ GANTRY BSMAE-F40L-300x300x100
XYZ GANTRY BSMAE-F40L-300x300x100
XYZ-BSMAE-F40L-300x300x100

XYZ stroke
300x300x100
Stepper/Servo/Smart motor

Load 10 Kg



XYZ GANTRY BSMAE-F40L-600x600x100
XYZ GANTRY BSMAE-F40L-600x600x100
XYZ-BSMAE-F40L-600x600x100

XYZ stroke
600x600x100
Stepper/Servo/Smart motor

Load 10 Kg



XYZ GANTRY BSMAE-F80L-600x600x100
XYZ GANTRY BSMAE-F80L-600x600x100
XYZ-BSMAE-F80L-600x600x100

XYZ stroke
600x600x100
Stepper/Servo/Smart motor

Load 15 Kg



XYZ GANTRY BSMAE-F120L-1000x1000x100
XYZ GANTRY BSMAE-F120L-1000x1000x100
XYZ-BSMAE-F120L-1000x1000x100

XYZ stroke
1000x1000x100
Stepper/Servo/Smart motor

Load 25 Kg



XYZ-BSMAE-F80L-300x300x300
XYZ-BSMAE-F80L-300x300x300
XYZ-BSMAE-F80L-300x300x300

XYZ stroke
100...1500x100...1000x100...300
Stepper/Servo/Smart motor

Load 10 Kg



XY GANTRY BSMAE-F40H-600x600
XY GANTRY BSMAE-F40H-600x600
XY GANTRY BSMAE-F40H-600x600

XY stroke:
100x100 mm
300x300 mm
600x600 mm
Stepper/Servo/Smart motor

Load 5 Kg



Actuator



XYZ ROBOT F120

XYZ Stroke

mm

X 100...1500
Y 100 ... 600
Z 100...300

Screw lead

mm

5, 10

Motor mounts size



Nema 34

Motor type



Stepper (standard)

Servo/encoder

Load

kg

20

Repeatability

micron

30

Speed (load dependent)

mm/sec

50 - 100 (stepper)

100 - 200 (servo)
